Integrating Third-party Search with Algolia

Introduction

In this guide, we'll walk through how to integrate Algolia (opens in a new tab) with Catalyst to enable powerful, fast search functionality. You'll learn how to:

Connect your BigCommerce data with Algolia
Replace Catalyst's default search experience
Use the Algolia React InstantSearch library to build a searchable product UI

By the end of this guide, you'll have a fully functioning custom search experience powered by Algolia, with facets and product cards styled to match your Catalyst store.

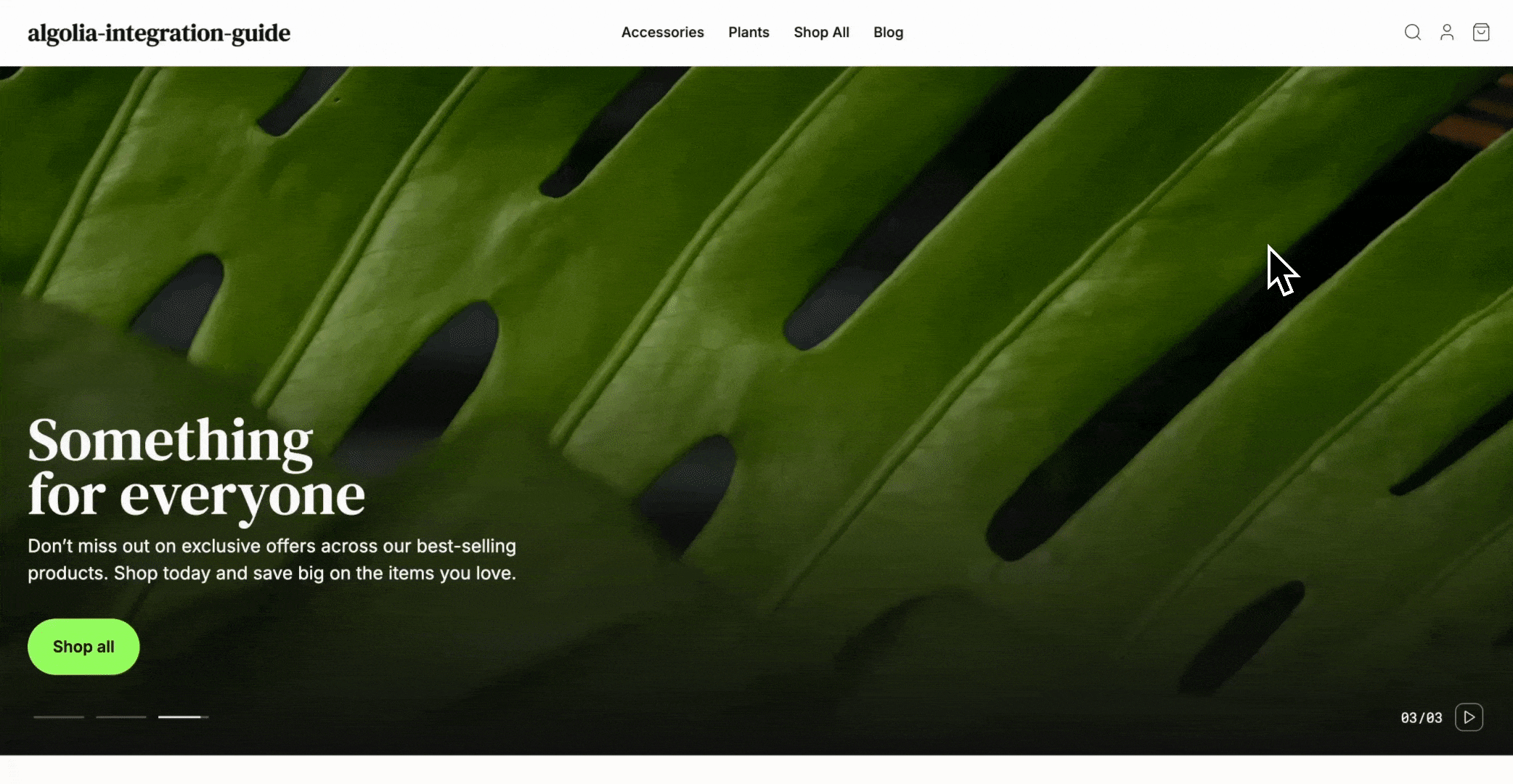

Algolia Demo

Prerequisites

Before getting started, you'll need:

An Algolia account
A locally running Catalyst instance

Follow our Getting Started guide and then our local development documentation to ensure you're able to run your Catalyst application locally.

💡

Be sure to Use sample data when creating your new Catalyst channel if you do not have any existing products you would like to use for your Catalyst channel already.

Create an application in Algolia

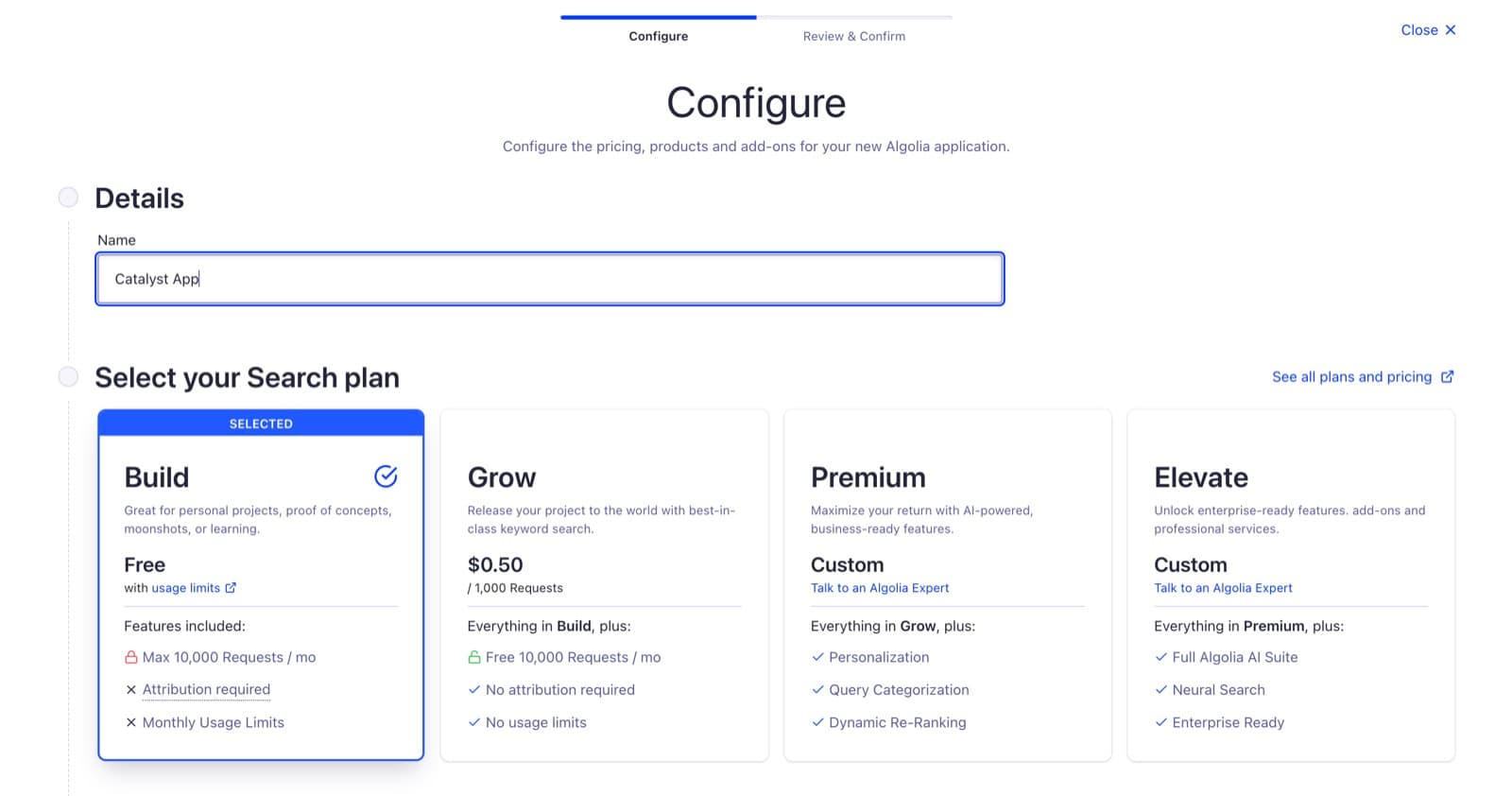

In your Algolia dashboard, create a new application. You can use Build plan to get started for free.

Create new algolia application

Choose a region based on your location (e.g., US East)
Click Next: Review & Confirm
Click Create Application

You should see a Congratulations page which indicates your application was created successfully.

Connect Algolia to BigCommerce

Next, we'll need to create an Algolia index for your Catalyst channel's products. An Algolia index is where the data used by Algolia is stored. From the Algolia docs (opens in a new tab):

An index is the equivalent of a table in a database but optimized for search and discovery operations.

Luckily, the Algolia Single-Click App (opens in a new tab) for BigCommerce makes the process of creating an Algolia index for your Catalyst channel's products easy.

⚠️

Due to the 10 KB limit on Algolia Record sizes for the Build plan (opens in a new tab), you will need to unassign the 3 Plant Bundle product from your Catalyst channel's catalog if you elected to Use sample data when creating your new Catalyst channel. Otherwise, the indexing of your data will fail.

Navigate to the Algolia Single-Click App (opens in a new tab)
Click Get this App and log into your BigCommerce store
Click Install
Review and accept the API scopes that the Algolia app requires to properly function
Click Login With Algolia and log into your Algolia account
Select the application you just created from the dropdown and click Next step: Channel selection
Choose your BigCommerce channel
Name your Algolia index using Product level indexing as the Record type and click Save
Click Yes, index now to start indexing your products

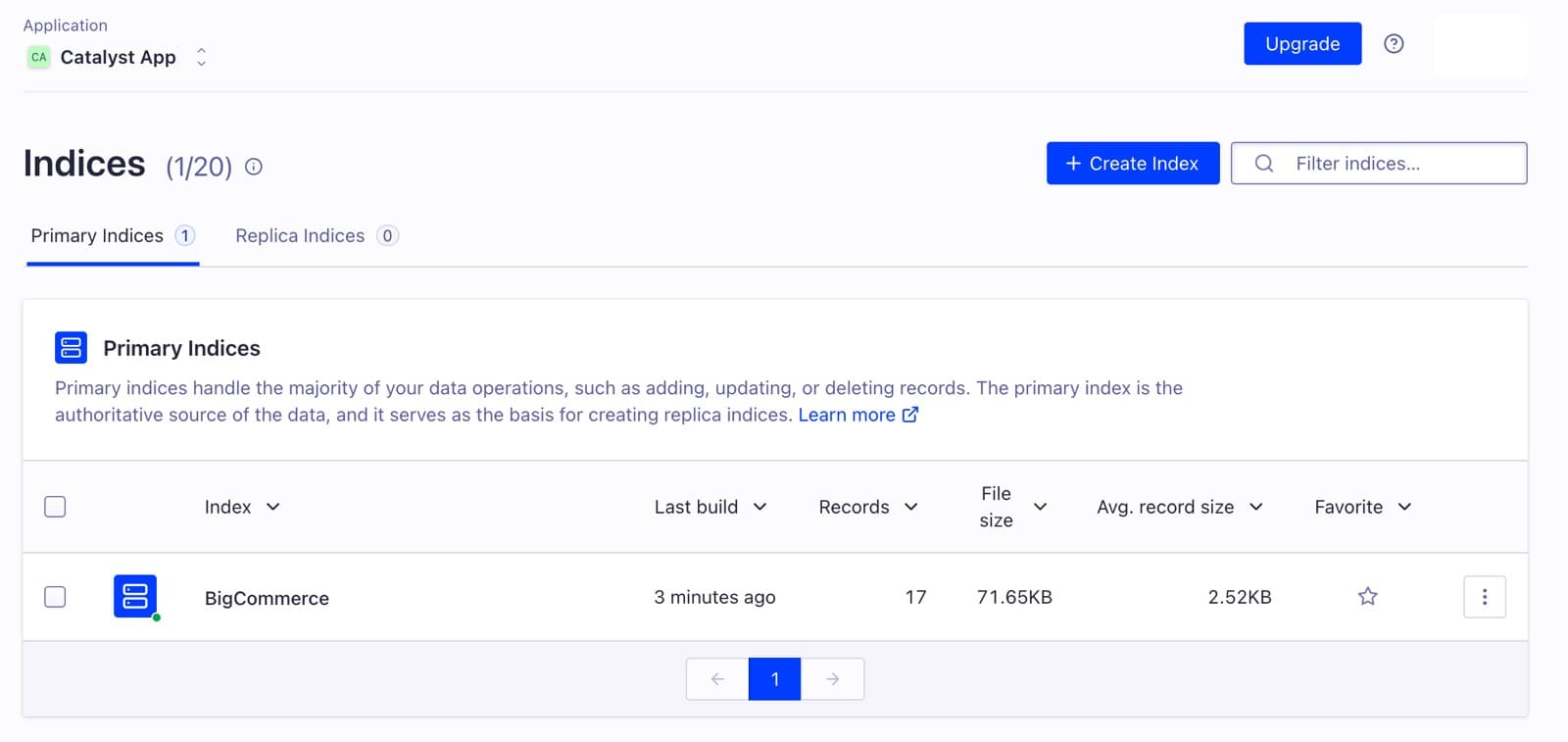

You can find you newly created Index in Algolia under Data Sources -> Indices.

View index in Algolia

Environment variables

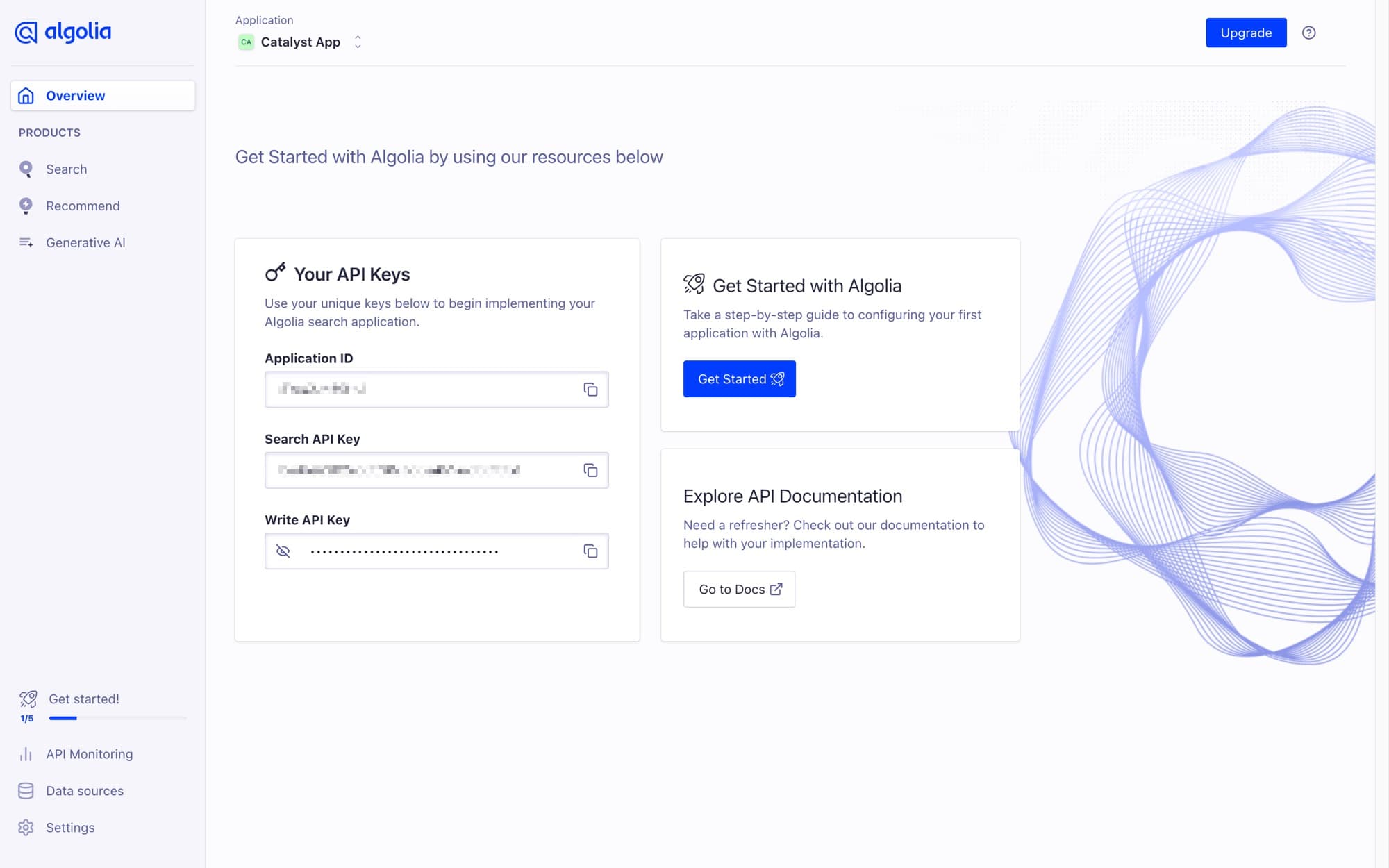

In your Algolia dashboard, navigate to the Overview tab and copy your Application ID and Search API Key.

View index in Algolia

Add the following environment variables to your .env.local file:

# ...existing env variables...

ALGOLIA_APPLICATION_ID="<YOUR_ALGOLIA_APPLICATION_ID>"
ALGOLIA_SEARCH_API_KEY="<YOUR_ALGOLIA_SEARCH_API_KEY>"
ALGOLIA_INDEX_NAME="<YOUR_ALGOLIA_INDEX_NAME>"

These will be used by the Algolia search client in your frontend.

Install Algolia dependencies

Install the following dependencies in the core/ workspace of your local Catalyst project:

pnpm --filter "./core" add react-instantsearch algoliasearch

The --filter flag (opens in a new tab) is used by pnpm to specify the workspace to install the dependencies in.

Implementation

We'll need to:

Create a new Algolia client
Modify the existing search results data transformer
Modify the existing search server action to fetch search results from Algolia

1. Algolia client

Create a new directory core/lib/algolia and, inside, add a new file client.ts. Then, create and export a new Algolia client:

core/lib/algolia/client.ts

import { algoliasearch } from 'algoliasearch';

if (!process.env.ALGOLIA_APPLICATION_ID) {
  throw new Error('ALGOLIA_APPLICATION_ID is required');
}

if (!process.env.ALGOLIA_SEARCH_API_KEY) {
  throw new Error('ALGOLIA_SEARCH_API_KEY is not set');
}

const algoliaClient = algoliasearch(
  process.env.ALGOLIA_APPLICATION_ID,
  process.env.ALGOLIA_SEARCH_API_KEY
);

export default algoliaClient;

2. Modify the search results data transformer

Now, you'll need to transform data from Algolia to the type of data that Catalyst is expecting. For this, you'll need a type definition for the Algolia data and an algoliaResultsTransformer function to transform the data. Open core/data-transformers/search-results-transformer.ts and replace its contents with the following.

core/data-transformers/search-results-transformer.ts

// 1. Remove the imports required by the existing searchResultsTransformer
import { getFormatter, getTranslations } from 'next-intl/server';

import { SearchResult } from '@/vibes/soul/primitives/navigation';

import { pricesTransformer } from './prices-transformer';

// 2. Define the AlgoliaHit type returned by the Algolia API via the algoliaClient
export interface AlgoliaHit {
  objectID: string;
  name: string;
  url: string;
  product_images: Array<{
    description: string;
    is_thumbnail: boolean;
    url_thumbnail: string;
  }>;
  categories_without_path: string[];
  default_price: string;
  prices: Record<string, number>;
  sales_prices: Record<string, number>;
  calculated_prices: Record<string, number>;
  retail_prices: Record<string, number>;
}

// 3. Implement the algoliaResultsTransformer function
export async function algoliaResultsTransformer(
  hits: AlgoliaHit[]
): Promise<SearchResult[]> {
  // 4. Get the formatter and translations for the current locale
  const format = await getFormatter();
  const t = await getTranslations('Components.Header.Search');

  // 5. Transform the Algolia hits into SearchResult objects
  const products = hits.map((hit) => {
    const price = pricesTransformer(
      {
        price: {
          value: hit.calculated_prices.USD ?? 0,
          currencyCode: 'USD',
        },
        basePrice: {
          value: parseInt(hit.default_price, 10),
          currencyCode: 'USD',
        },
        retailPrice: {
          value: hit.retail_prices.USD ?? 0,
          currencyCode: 'USD',
        },
        salePrice: {
          value:
            hit.sales_prices.USD && hit.sales_prices.USD > 0
              ? hit.sales_prices.USD
              : parseInt(hit.default_price, 10),
          currencyCode: 'USD',
        },
        priceRange: {
          min: {
            value: hit.prices.USD ?? 0,
            currencyCode: 'USD',
          },
          max: {
            value: hit.prices.USD ?? 0,
            currencyCode: 'USD',
          },
        },
      },
      format
    );

    return {
      id: hit.objectID,
      title: hit.name,
      href: hit.url,
      price,
      image: {
        src:
          hit.product_images.find((image) => image.is_thumbnail)
            ?.url_thumbnail ?? '',
        alt: hit.product_images[0]?.description ?? '',
      },
    };
  });

  // 6. Create the product results SearchResult object
  const productResults: SearchResult = {
    type: 'products',
    title: t('products'),
    products,
  };

  // 7. For the returned product results, create a unique list of categories.
  //    For example, if you had two products, one with categories ['Electronics',
  //    'Computers'] and another with ['Electronics', 'Cameras'], this step would
  //    produce ['Electronics', 'Computers', 'Cameras'].
  const uniqueCategories = Array.from(
    new Set(hits.flatMap((product) => product.categories_without_path))
  );

  // 8. Create the category results SearchResult object
  const categoryResults: SearchResult = {
    type: 'links',
    title: t('categories'),
    links: uniqueCategories.map((category) => {
      return {
        label: category,
        href: `/${category.toLowerCase().replace(/\s+/g, '-')}`,
      };
    }),
  };

  // 9. Create an array to hold the final results
  const results = [];

  // 10. If there are any categories, add them to the results
  if (categoryResults.links.length > 0) {
    results.push(categoryResults);
  }

  // 11. If there are any products, add them to the results
  if (products.length > 0) {
    results.push(productResults);
  }

  return results;
}

3. Modify the search Server Action

To use the transformer you just created, you'll need to update the core/components/header/_actions/search.ts file which handles search on the server. Open that file and replace its contents with the following:

core/components/header/_actions/search.ts

'use server';

import { BigCommerceGQLError } from '@bigcommerce/catalyst-client';
import { SubmissionResult } from '@conform-to/react';
import { parseWithZod } from '@conform-to/zod';
import { strict } from 'assert';
import { getTranslations } from 'next-intl/server';
import { z } from 'zod';

import { SearchResult } from '@/vibes/soul/primitives/navigation';

// 1. Import required Algolia dependencies, including the transformer and client
import {
  AlgoliaHit,
  algoliaResultsTransformer,
} from '~/data-transformers/search-results-transformer';
import algoliaClient from '~/lib/algolia/client';

export async function search(
  prevState: {
    lastResult: SubmissionResult | null;
    searchResults: SearchResult[] | null;
    emptyStateTitle?: string;
    emptyStateSubtitle?: string;
  },
  formData: FormData
): Promise<{
  lastResult: SubmissionResult | null;
  searchResults: SearchResult[] | null;
  emptyStateTitle: string;
  emptyStateSubtitle: string;
}> {
  const t = await getTranslations('Components.Header.Search');
  const submission = parseWithZod(formData, {
    schema: z.object({ term: z.string() }),
  });
  const emptyStateTitle = t('noSearchResultsTitle', {
    term: submission.status === 'success' ? submission.value.term : '',
  });
  const emptyStateSubtitle = t('noSearchResultsSubtitle');

  if (submission.status !== 'success') {
    return {
      lastResult: submission.reply(),
      searchResults: prevState.searchResults,
      emptyStateTitle,
      emptyStateSubtitle,
    };
  }

  if (submission.value.term.length < 3) {
    return {
      lastResult: submission.reply(),
      searchResults: null,
      emptyStateTitle,
      emptyStateSubtitle,
    };
  }

  try {
    // 2. Ensure the Algolia index name is set
    strict(process.env.ALGOLIA_INDEX_NAME);

    // 3. Send the search term from the form submission to Algolia instead of
    //    BigCommerce
    const algoliaResults = await algoliaClient.searchSingleIndex<AlgoliaHit>({
      indexName: process.env.ALGOLIA_INDEX_NAME,
      searchParams: {
        query: submission.value.term,
        // 4. Add any filters you want to apply to the search results
        filters: 'is_visible:true',
      },
    });

    return {
      lastResult: submission.reply(),
      // 5. Transform the Algolia hits into SearchResult objects
      searchResults: await algoliaResultsTransformer(algoliaResults.hits),
      emptyStateTitle,
      emptyStateSubtitle,
    };
  } catch (error) {
    // eslint-disable-next-line no-console
    console.error(error);

    if (error instanceof BigCommerceGQLError) {
      return {
        lastResult: submission.reply({
          formErrors: error.errors.map(({ message }) => message),
        }),
        searchResults: prevState.searchResults,
        emptyStateTitle,
        emptyStateSubtitle,
      };
    }

    if (error instanceof Error) {
      return {
        lastResult: submission.reply({ formErrors: [error.message] }),
        searchResults: prevState.searchResults,
        emptyStateTitle,
        emptyStateSubtitle,
      };
    }

    return {
      lastResult: submission.reply({
        formErrors: [t('error')],
      }),
      searchResults: prevState.searchResults,
      emptyStateTitle,
      emptyStateSubtitle,
    };
  }
}

Step 5: Check your work

Ensure you've saved all your changes and then run the development server:

pnpm dev

Open http://localhost:3000 and try searching for Plant. You should see the Algolia search results rendered in your Catalyst storefront!

Algolia Demo

Next Steps

Optimize your Algolia settings for ranking (opens in a new tab) and typo tolerance (opens in a new tab)
Expand your facets (opens in a new tab) for improved filtering
